Declaration of the IDeviceNetworkLowLevel interface representing the complex system for the Facade Pattern. More...

#include <stdbool.h>
#include "helpers/uintarray.h"

Include dependency graph for Facade_ComplexSystem.h:

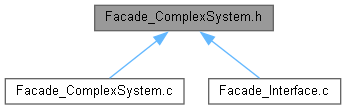

This graph shows which files directly or indirectly include this file:

Classes
struct	IDeviceNetworkLowLevel
	Represents a network of device chains and the low level access to that network. In general, the caller should take a lock on a device chain before accessing it then release the lock when done. Part of the Facade Pattern example. More...

Enumerations
enum	DeviceTypes { DEVICECONTROLLER , CORE , GTE , PCH , PMC }
	Identifies the type of devices that can appear in a device chain. Part of the Facade Pattern example. More...

Functions
IDeviceNetworkLowLevel *	Facade_GetLowLevelDeviceService (void)
	Retrieve a set of function pointers to the low-level device service used in the Facade Pattern example.

Detailed Description

Declaration of the IDeviceNetworkLowLevel interface representing the complex system for the Facade Pattern.

Macro Definition Documentation

#define __FACADE_COMPLEXSYSTEM_H__

Definition at line 8 of file Facade_ComplexSystem.h.

Identifies the type of devices that can appear in a device chain. Part of the Facade Pattern example.

Enumerator
DEVICECONTROLLER	device controller. This is always visible.
CORE	Core device.
GTE	GTE device.
PCH	PCH device.
PMC	PMC device.

Definition at line 18 of file Facade_ComplexSystem.h.

IDeviceNetworkLowLevel * Facade_GetLowLevelDeviceService ( void )

Retrieve a set of function pointers to the low-level device service used in the Facade Pattern example.

Returns: Returns an IDeviceNetworkLowLevel interface representing the full device network.

Definition at line 368 of file Facade_ComplexSystem.c.
